Hochbehälter (TI84)

 LINK zur TI84-Datei: hobi.8xp

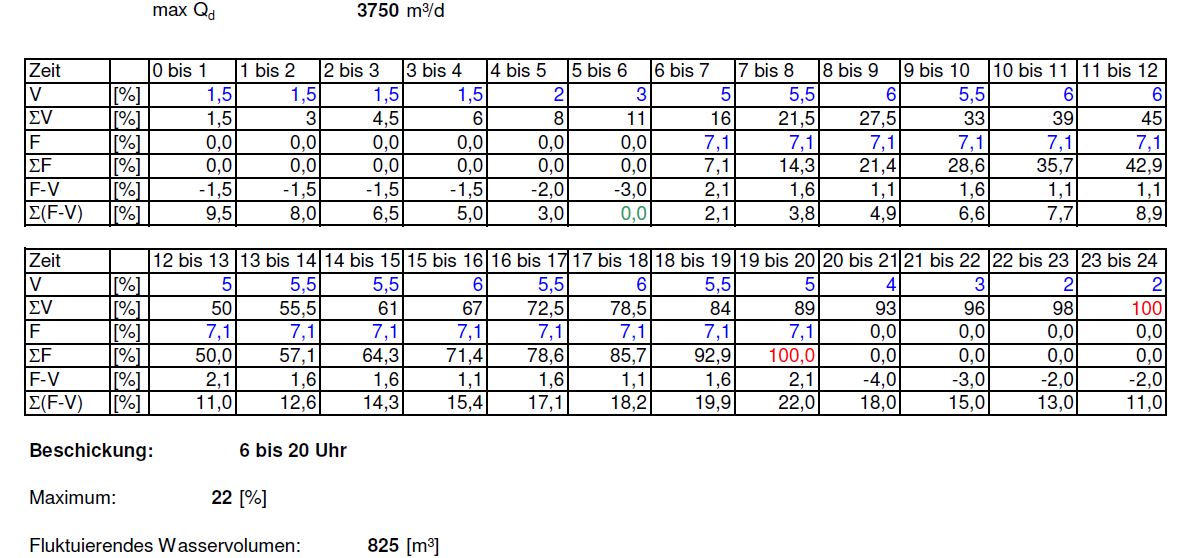

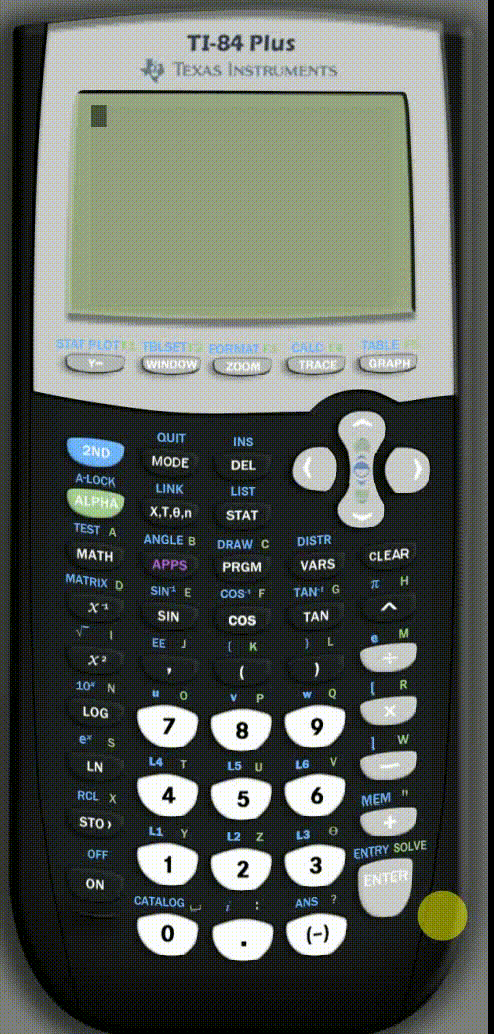

Öffnen mit Emulator (PC, Mobile) oder TI82, TI84plus

Von Hand:

TI-Basic (Programmiercode TI-Basic)

GridOff
ClrHome
Disp "","---------------","TAGESBEDARF (Q)","---------------"
Pause
ClrHome
Input "MAX QD (M3/D)     ",Q
ClrHome
Disp "","---------------","BESCHICKUNG (F)","---------------"
Pause
ClrHome
Disp "FOERDERZEIT"
Input "START (UHR) ",S
Input "DAUER (H) ",K
S+K→E
100/K→P
For(B,1,24)
If B≤S
Then
0→L₆(B)
Else
P→L₆(B)
End
End
For(B,1,24)
If B>E
Then
0→L₆(B)
End
End
If E>24
Then
E-24→E
For(B,1,24)
If B≤E
Then
P→L₆(B)
End
End
End
Disp "ENDE (UHR)",E
Pause
ClrHome
0→Xmin
0→Ymin
max(L₆)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"F")
Text(5,5,"FMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₆(B))
End
Pause
ClrHome
Disp "","---------------","VERBRAUCH (V)","---------------"
Pause
ClrHome
Disp "SIEDLUNGSTYP"
Disp "LISTEN NEU","BELEGEN","","QUELLE WERTE","SCHNEIDER BT",""
Input "(1=JA) ",J
If J=1
Then
{0.5,0.5,0.5,0,0.1,6.4,12.5,8.5,3.5,3,3,4.5,11,10,1,1.5,1.5,2,3,5.5,9,8.5,3,1}→L₂
{2,1.5,1,0.5,0.5,1.5,2.5,3,3.5,4,5,7,9.5,10,8.5,5,3.5,3,5,8,6,4,3,2.5}→L₃
{1.5,1.5,1.5,1.5,2,3,5,5.5,6,5.5,6,6,5,5.5,5.5,6,5.5,6,5.5,5,4,3,2,2}→L₄
{2.6,2.4,2.2,2.1,2.2,4.2,5.3,5.7,5.6,5.4,5.3,5.3,5.2,5.1,4.9,4.5,4.2,4.7,5,5,4.2,3.3,2.9,2.7}→L₅
End
ClrDraw
Pause
ClrHome
Disp "SIEDLUNGSTYP"
Disp "AUSWAEHLEN"
Disp "1=DORF"
Disp "2=KLEINSTADT"
Disp "3=MITTELSTADT"
Disp "4=GROSSTADT"
Disp "5=EIGENE"
Input "AUSWAHL (1-5) ",L
ClrHome
0→J
If L=5
Then
For(B,1,24)
Disp B,"UHR"
Input "%-ANTEIL ",U
Disp "----------------"
U→L₂(B)
J+U→J
Disp "ΣV",J
Disp "----------------"
L₆(B)-L₂(B)→L₁(B)
End
0→Xmin
0→Ymin
max(L₂)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"V")
Text(5,5,"VMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₂(B))
End
End
If L=1
Then
For(B,1,24)
L₆(B)-L₂(B)→L₁(B)
End
0→Xmin
0→Ymin
max(L₂)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"V")
Text(5,5,"VMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₂(B))
End
End
If L=2
Then
For(B,1,24)
L₆(B)-L₃(B)→L₁(B)
End
0→Xmin
0→Ymin
max(L₃)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"V")
Text(5,5,"VMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₃(B))
End
End
If L=3
Then
For(B,1,24)
L₆(B)-L₄(B)→L₁(B)
End
0→Xmin
0→Ymin
max(L₄)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"V")
Text(5,5,"VMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₄(B))
End
End
If L=4
Then
For(B,1,24)
L₆(B)-L₅(B)→L₁(B)
End
0→Xmin
0→Ymin
max(L₅)→O
O→Ymax
24→Xmax
round(O,1)→O
Text(5,90,"V")
Text(5,5,"VMAX")
Text(12,5,O," %")
For(B,1,24)
Line(B,0,B,L₅(B))
End
End
Pause
ClrHome
0→L₅(1)
For(B,2,24)
L₅(B-1)+L₁(B)→L₅(B)
End
max(L₅)→M
min(L₅)→N
{2.6,2.4,2.2,2.1,2.2,4.2,5.3,5.7,5.6,5.4,5.3,5.3,5.2,5.1,4.9,4.5,4.2,4.7,5,5,4.2,3.3,2.9,2.7}→L₅
abs(M)→M
abs(N)→N
M+N→D
Disp "MAX QD M3/D ",Q
Disp "FLUKT. % ",D,""
Q*D/100→V
round(V,0)→V
Disp "VOLUMEN M3 ",V
Pause
ClrHome
ClrDraw
AxesOff
AxesOn
0→Xmin
0→Ymin
100→Ymax
24→Xmax
0→R
0→W
0→Z
0→Y
Vertical 7
Vertical 13
Vertical 19
Horizontal 50
Horizontal 25
Horizontal 75
For(B,1,24)
If L=1
Then
Y→R
Y+L₂(B)→Y
Z→W
Z+L₆(B)→Z
End
If L=2
Then
Y→R
Y+L₃(B)→Y
Z→W
Z+L₆(B)→Z
End
If L=3
Then
Y→R
Y+L₄(B)→Y
Z→W
Z+L₆(B)→Z
End
If L=4
Then
Y→R
Y+L₅(B)→Y
Z→W
Z+L₆(B)→Z
End
If L=5
Then
Y→R
Y+L₂(B)→Y
Z→W
Z+L₆(B)→Z
End
Line(B,W,B+1,Z)
Line(B,R,B+1,Y)
Line(B,W,B,R,2)
Text(5,5,"ΣF")
Text(12,8," =",D," %")
Text(19,8,"V =",V," m3")
Text(55,43,"ΣV")
End
Pause
ClrHome
